เครื่องแปลงความถี่ WACKER NEUSON

![]() ![]() |
![]() ![]() |
Electronic Frequency Converter | Mechanical Frequency Converters |

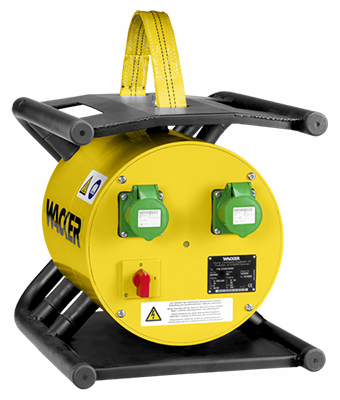

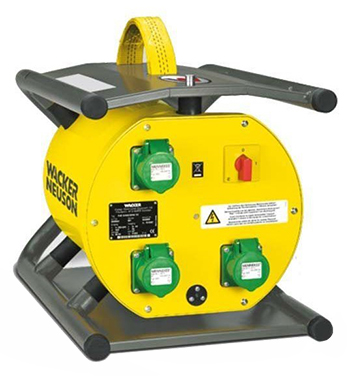

เครื่องแปลงความถี่อิเล็กทรอนิกส์ รุ่น FUE
- Light and compact aluminum design
- The intelligent voltage and power management compensates for fluctuations of mains input voltage or appliances with greatly varying use of power
- Deployable virtually everywhere due to a pule sensitive protective ground fault interrupter
- Maximum safety: galvanic isolation with isolating transformer
- Maintenance-free
![]() |
![]() |
![]() |
![]() |
FUE1 | FUE2 | FUE6 | FUE-M/S75A FUE-M/S85A |
ลักษณะรุ่นสินค้าอาจมีการเปลี่ยนแปลงได้ตามภูมิภาคและช่วงเวลาจำหน่าย |
FUE1 | FUE2 | FUE6 | FUE-M/S75A | FUE-M/S85A | |
---|---|---|---|---|---|
Input / Output Voltage, V | 230,1~ / 42,3~ | 230,1~ / 42,3~ | 230,1~ / 42,3~ | 400,3~ / 42,3~ | 400,3~ / 42,3~ |
Input / Output Frequency, Hz | 50-60 / 200 | 50-60 / 200 | 50-60 / 0-200 | 50-60 / 0-200 | 50-60 / 0-200 |
Input / Output Current, A | 9.6 / 25 | 13 / 35 | 14.8 / 53 | 13 / 75 | 13 / 85 |
Number of Sockets | 1 | 2 | 3 or 4 | 4 | 4 |
Power Cable, m | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
Weight, kg | 25 | 26.4 | 32.5 | 29.5 | 42 |
Dimension, mm | 420 x 325 x 325 | 420 x 325 x 325 | 524 x 325 x 325 | 520 x 310 x 494 |
* ขนาด Output 250 V 200 Hz มีจำหน่ายในรุ่น FUE85 ด้วย สำหรับรุ่นอื่น ๆ กรุณาสอบถามเพิ่มเติม

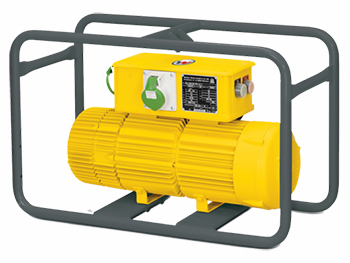

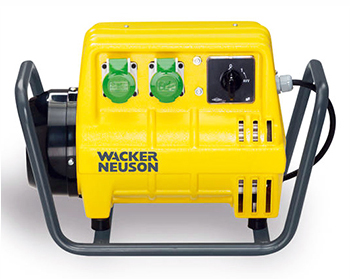

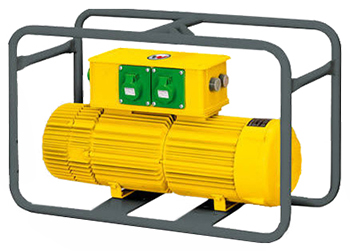

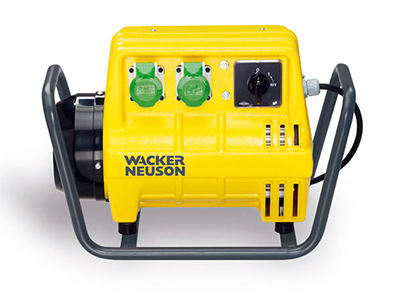

เครื่องแปลงความถี่แมคคานิครุ่น FU
- Mechanical machine concept
- Extremely low-maintenance : work without carbon brushes
- Immune to overheating: the windings are made of heat-resistant Class H material and can withstand temperatures of up to 180 degree celsius
- Extremely sturdy and durable
![]() |
![]() |
![]() |
![]() |
FU1.5 | FU1.8 | FU4 | FU5z |
ลักษณะรุ่นสินค้าอาจมีการเปลี่ยนแปลงได้ตามภูมิภาคและช่วงเวลาจำหน่าย |
FU1.5 * | FU1.8 * | FU4 * | FU5z * | |
---|---|---|---|---|
Input / Output Voltage, V | 230,1~ / 42,3~ | 400,3~ / 42,3~ | 400,3~ / 42,3~ | 400,3~ / 42,3~ |
Input / Output Frequency, Hz | 50-60 / 200 | 50-60 / 200 | 50-60 / 200 | 50-60 / 200 |
Input / Output Current, A | 9 / 20.6 | 5 / 27 | 10 / 52 | 13.2 / 69 |
Number of Sockets | 2 | 2 | 3 | 4 |
Power Cable, m | 2 | 2 | 2 | 2 |
Weight, kg | 27 | 26 | 64 | 75 |
Dimension, mm | 495 x 220 x 340 | 495 x 220 x 340 | 790 x 350 x 495 | 800 x 350 x 495 |
* สินค้าสั่งพิเศษ กรุณาสอบถามสต๊อกเพิ่มเติม
** ขนาด Output 250 V 200 Hz มีจำหน่ายในรุ่น FU5z ด้วย สำหรับรุ่นอื่น ๆ กรุณาสอบถามเพิ่มเติม
